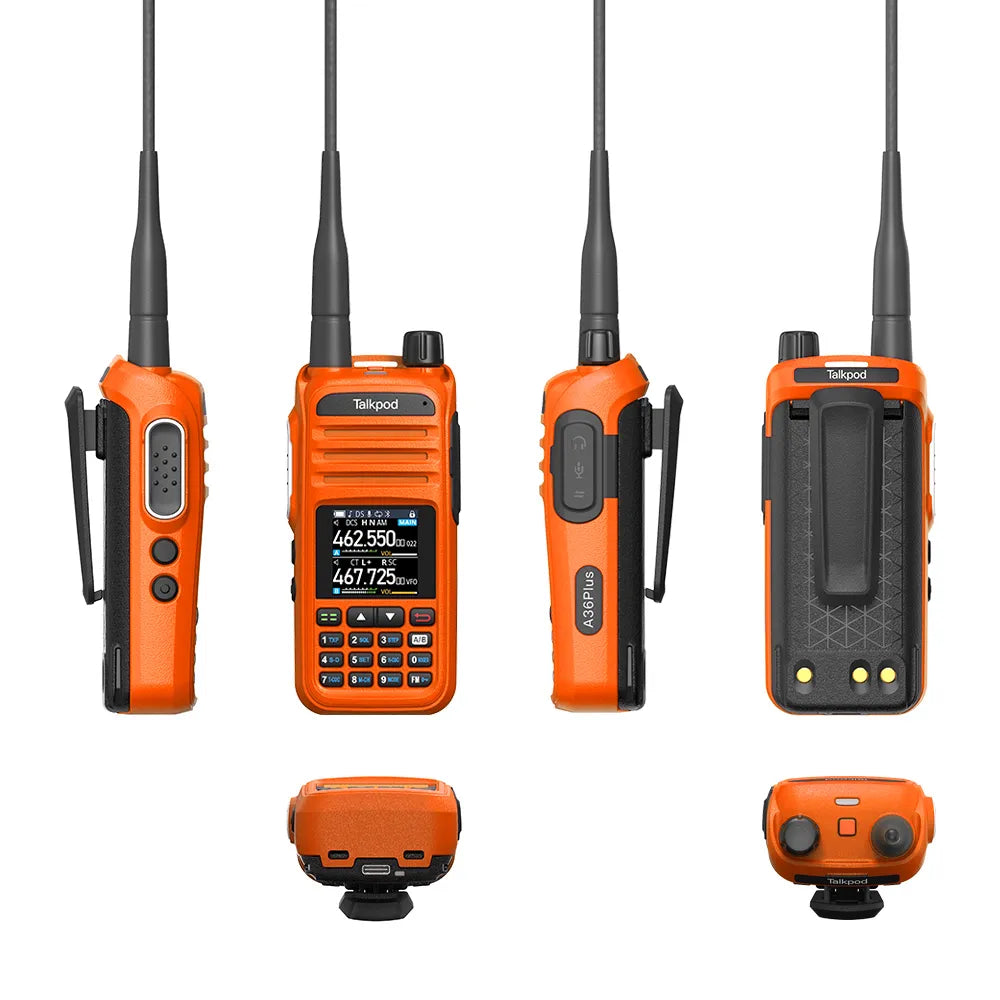

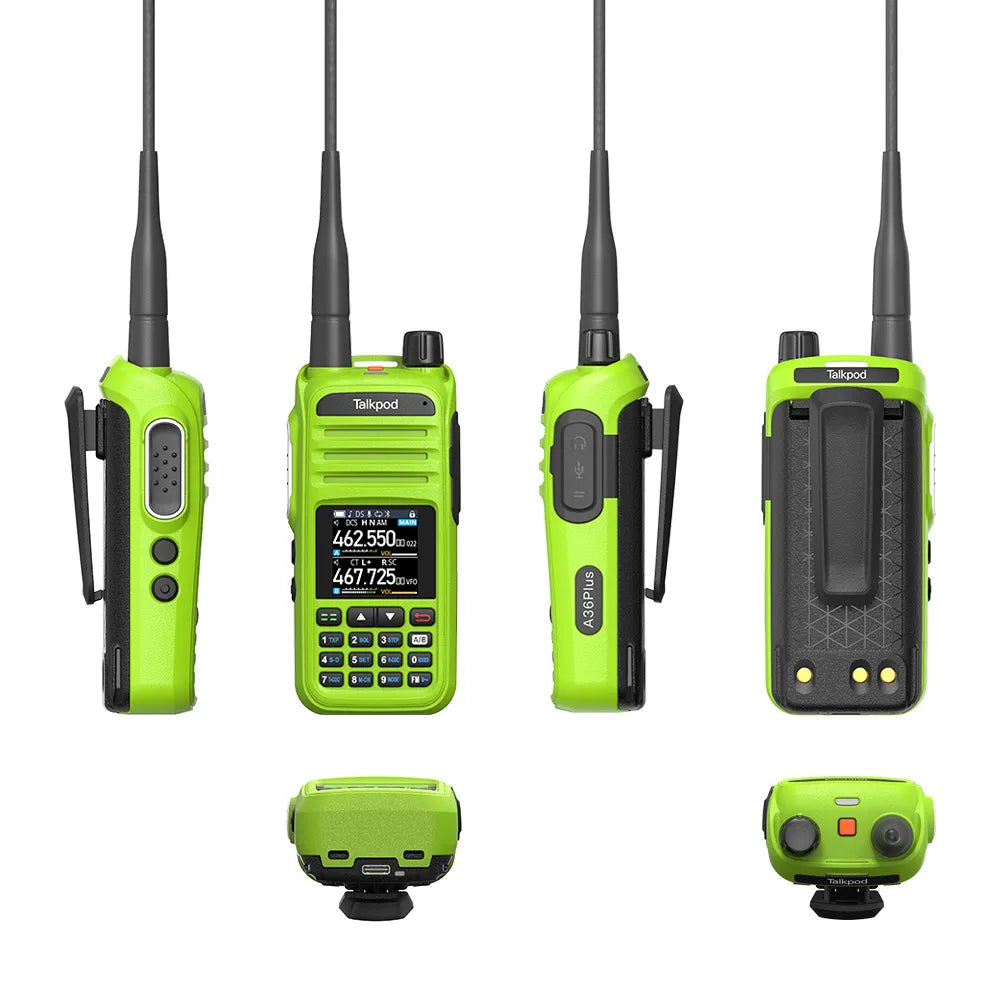

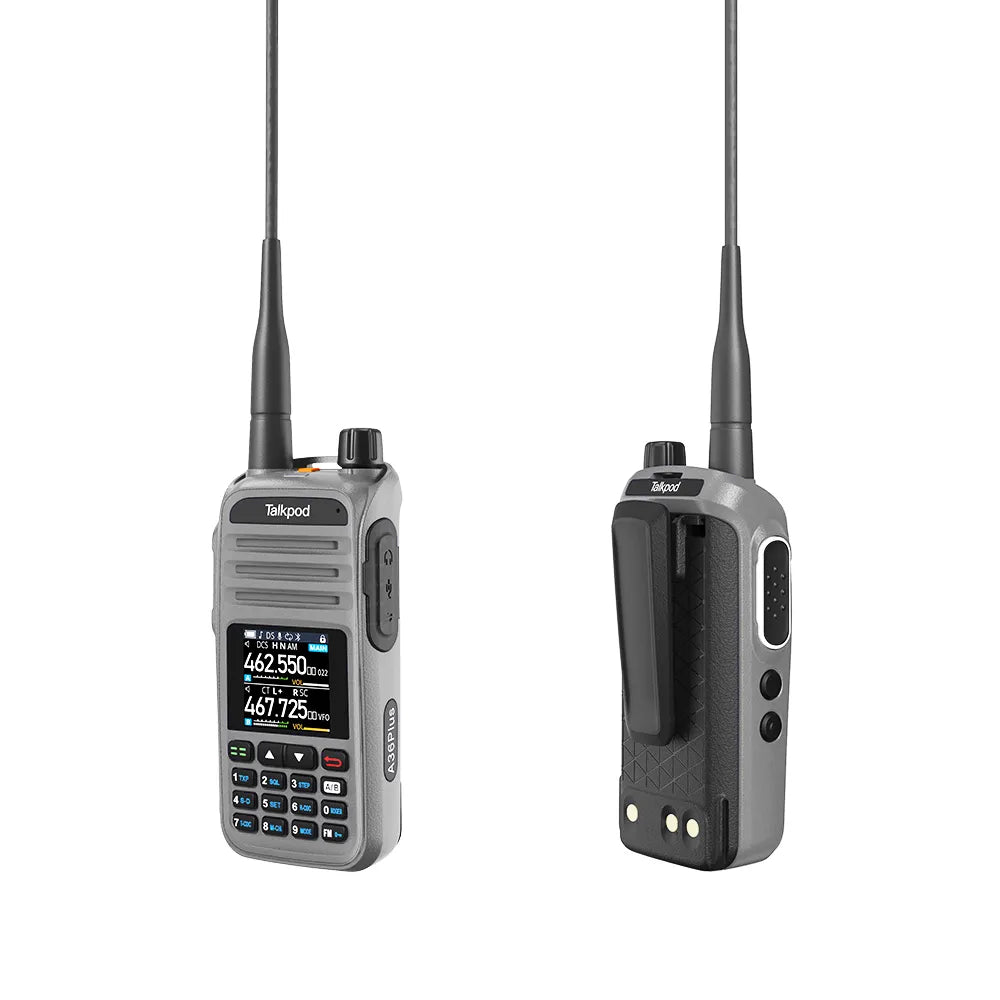

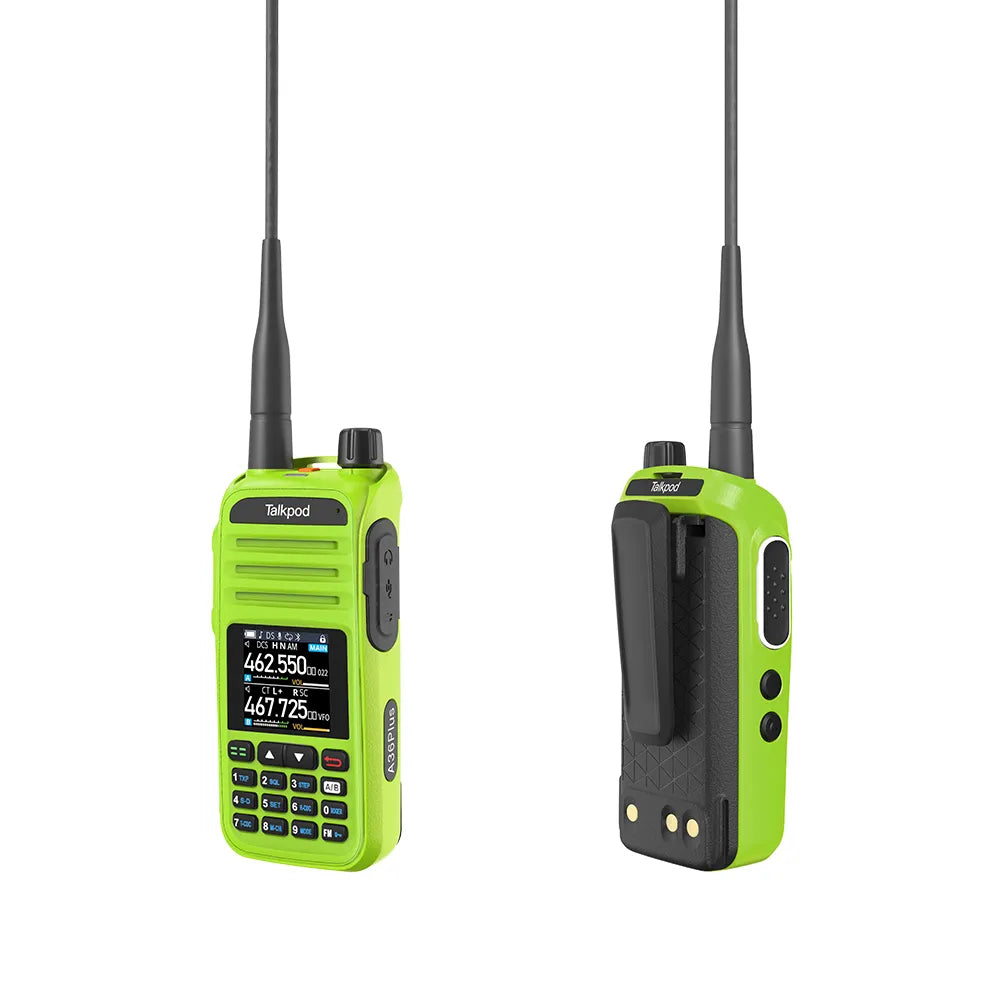

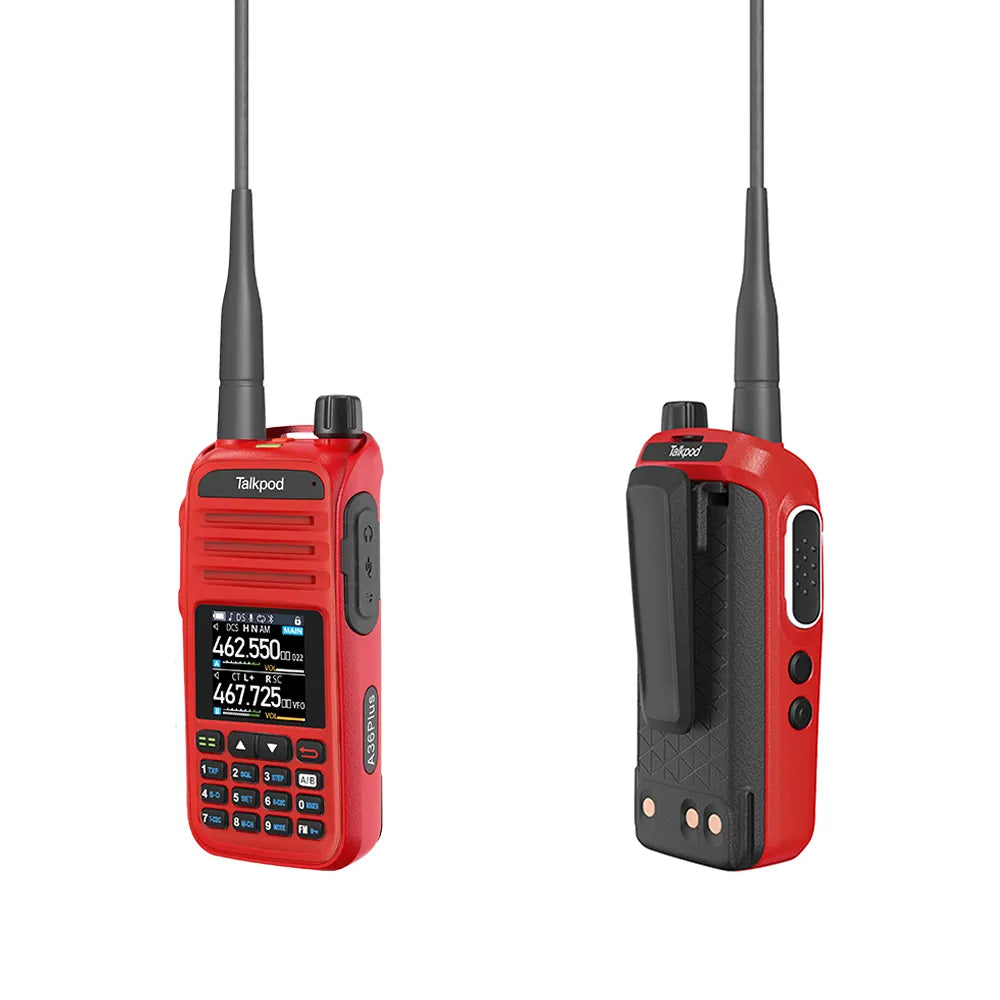

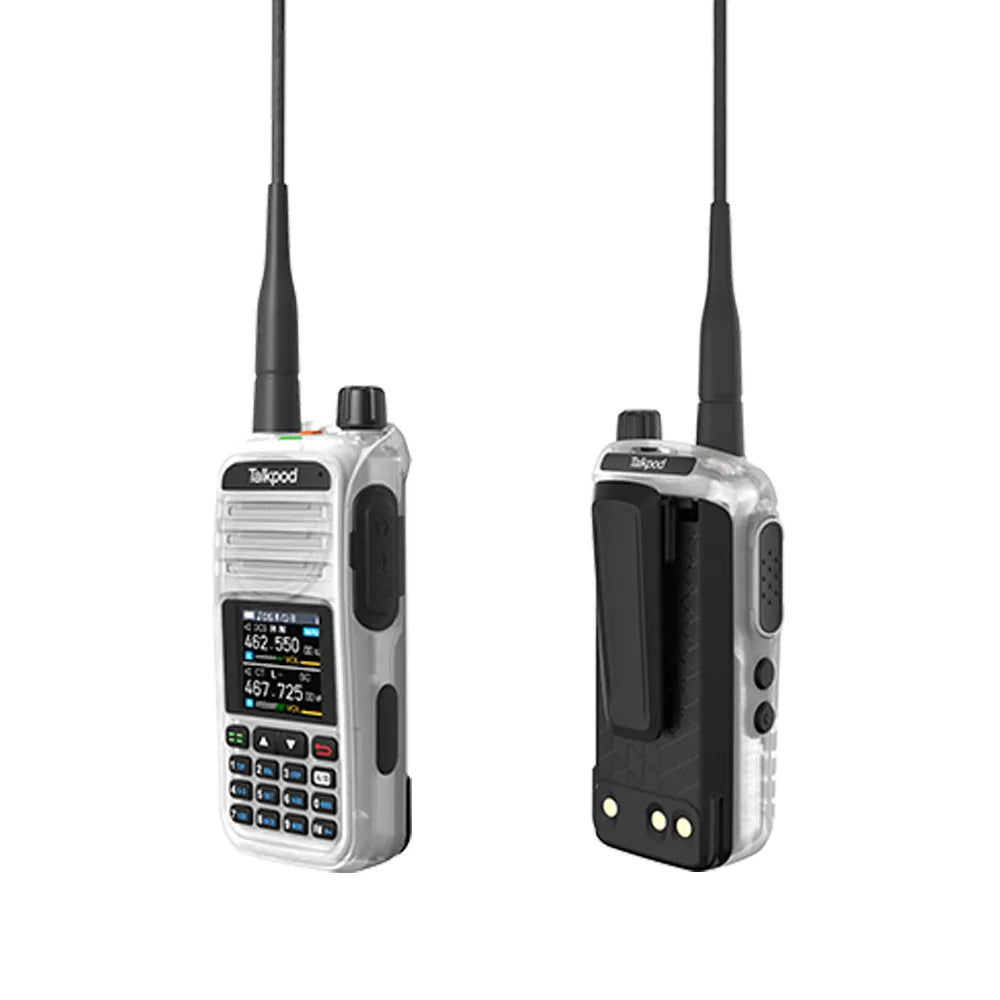

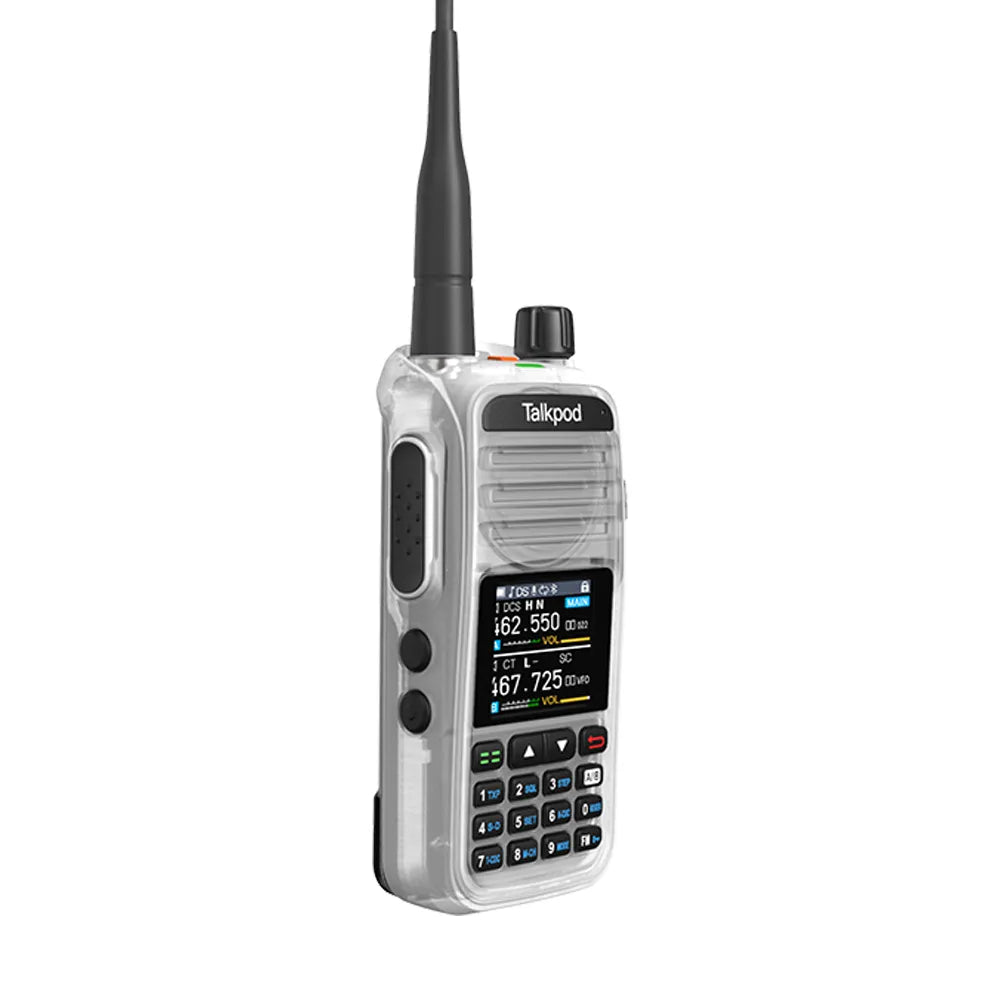

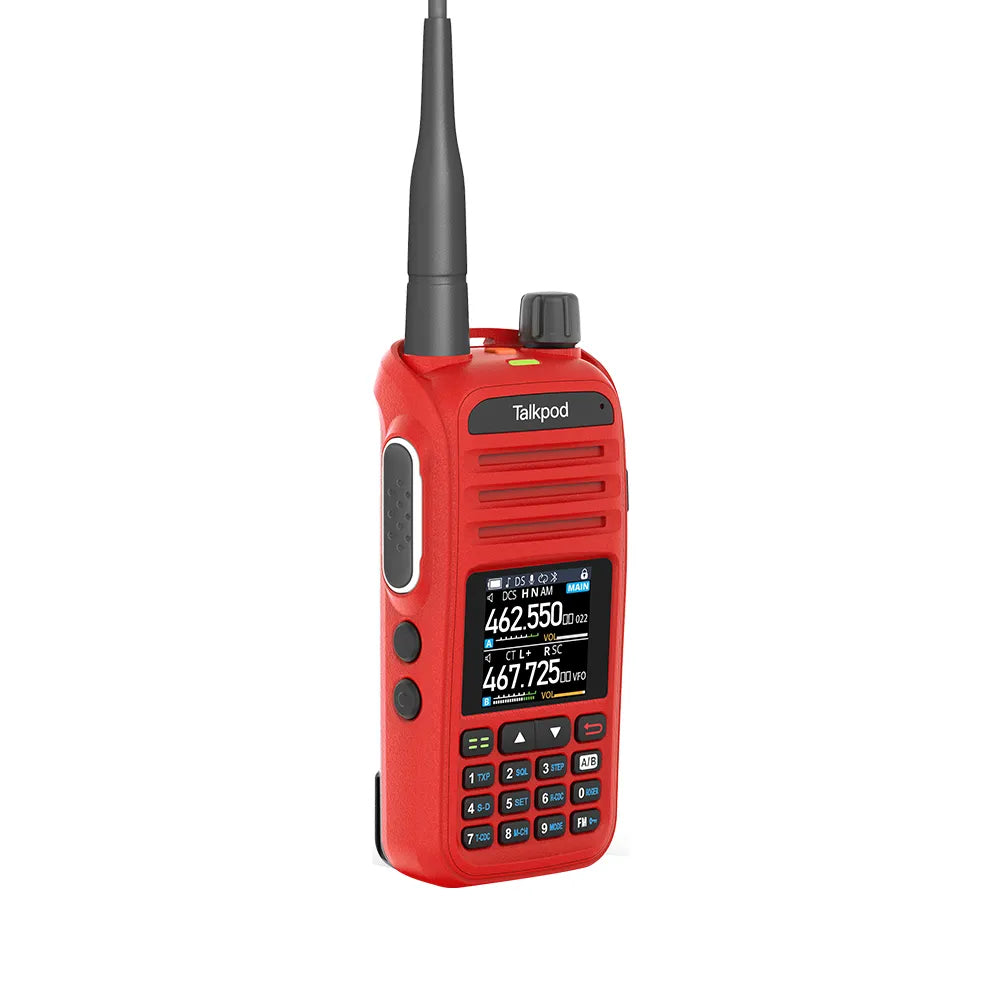

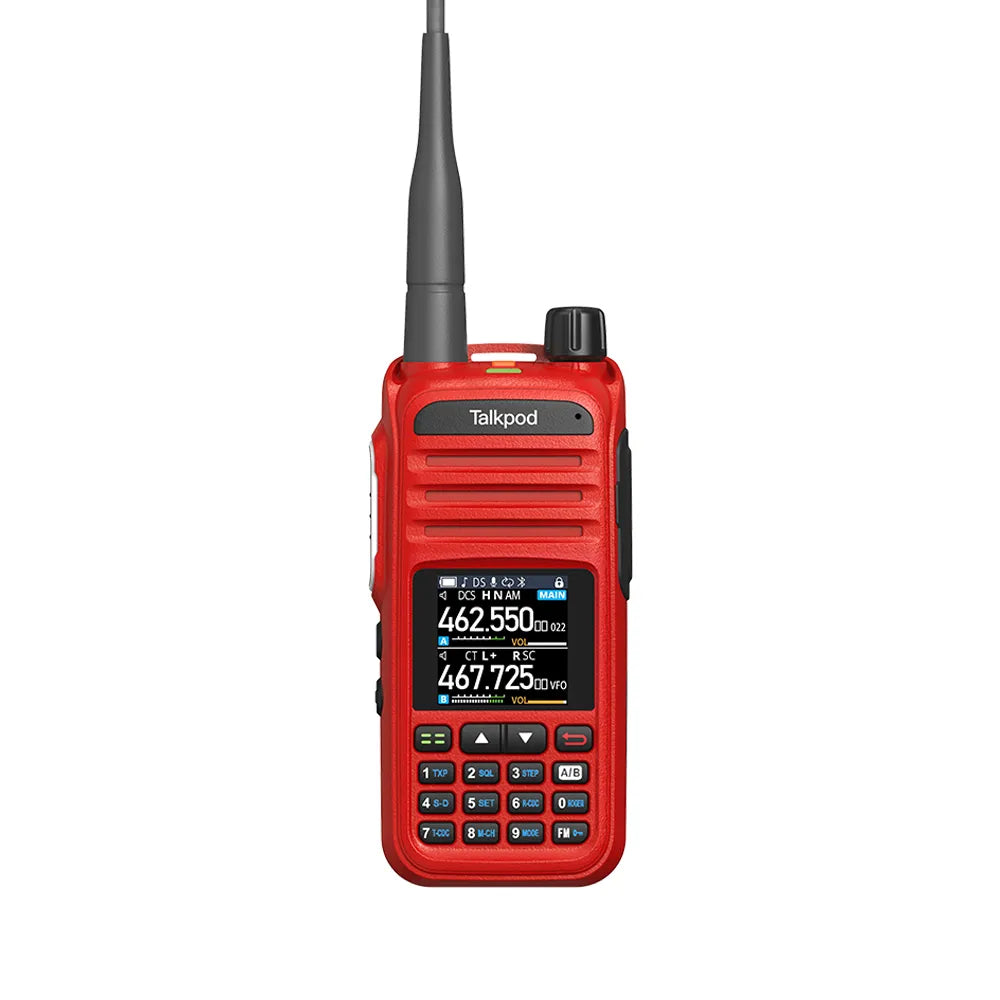

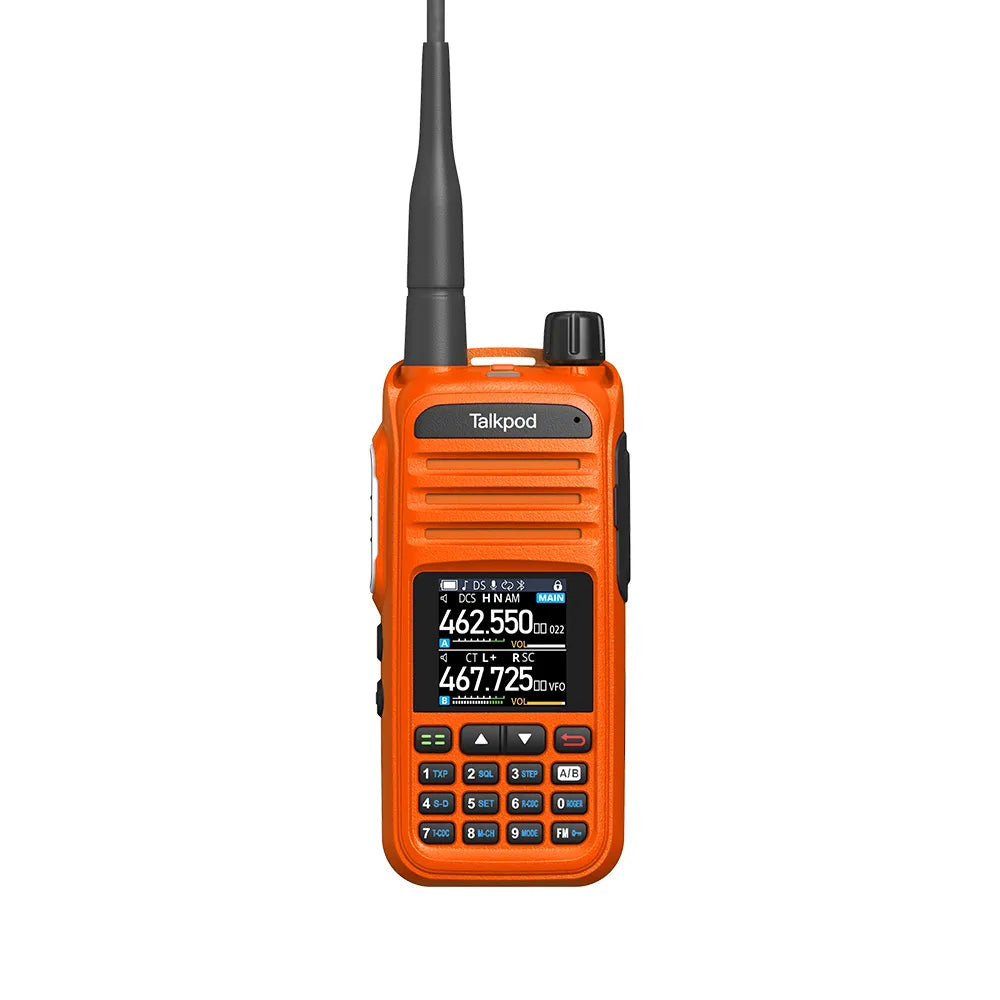

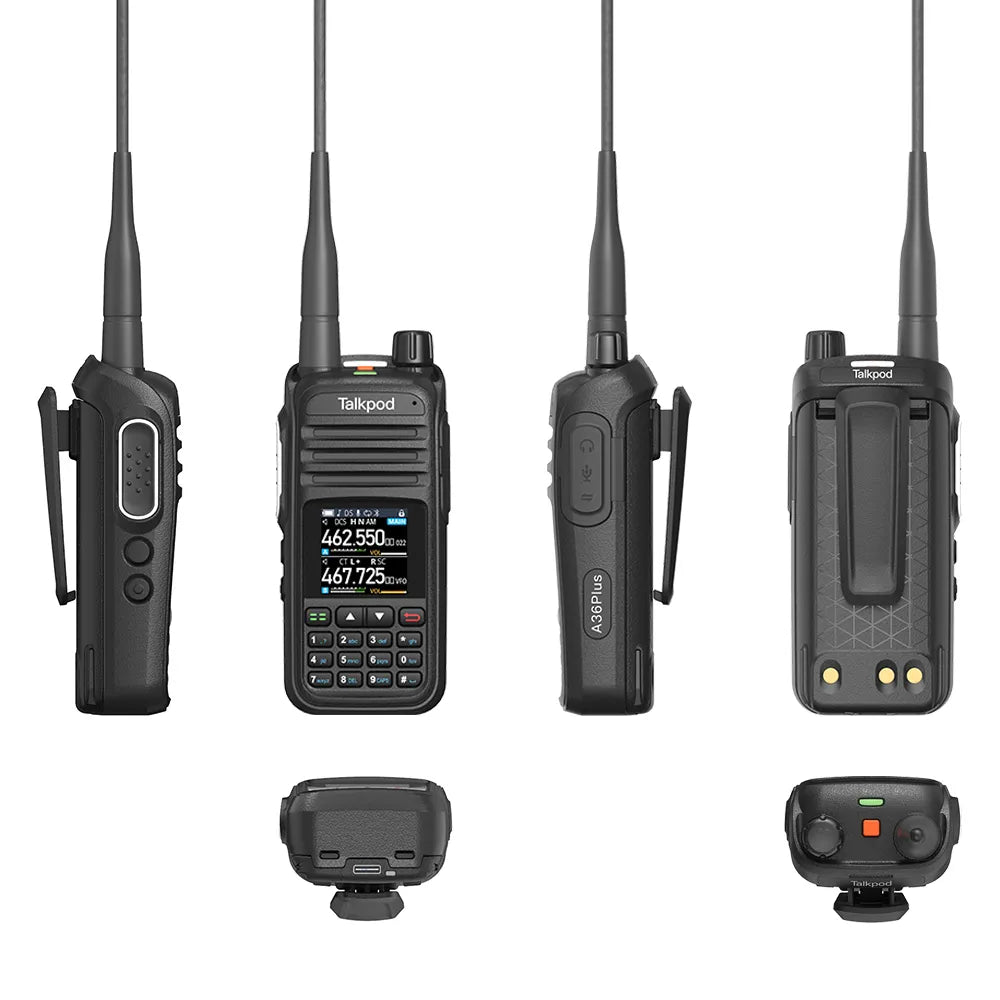

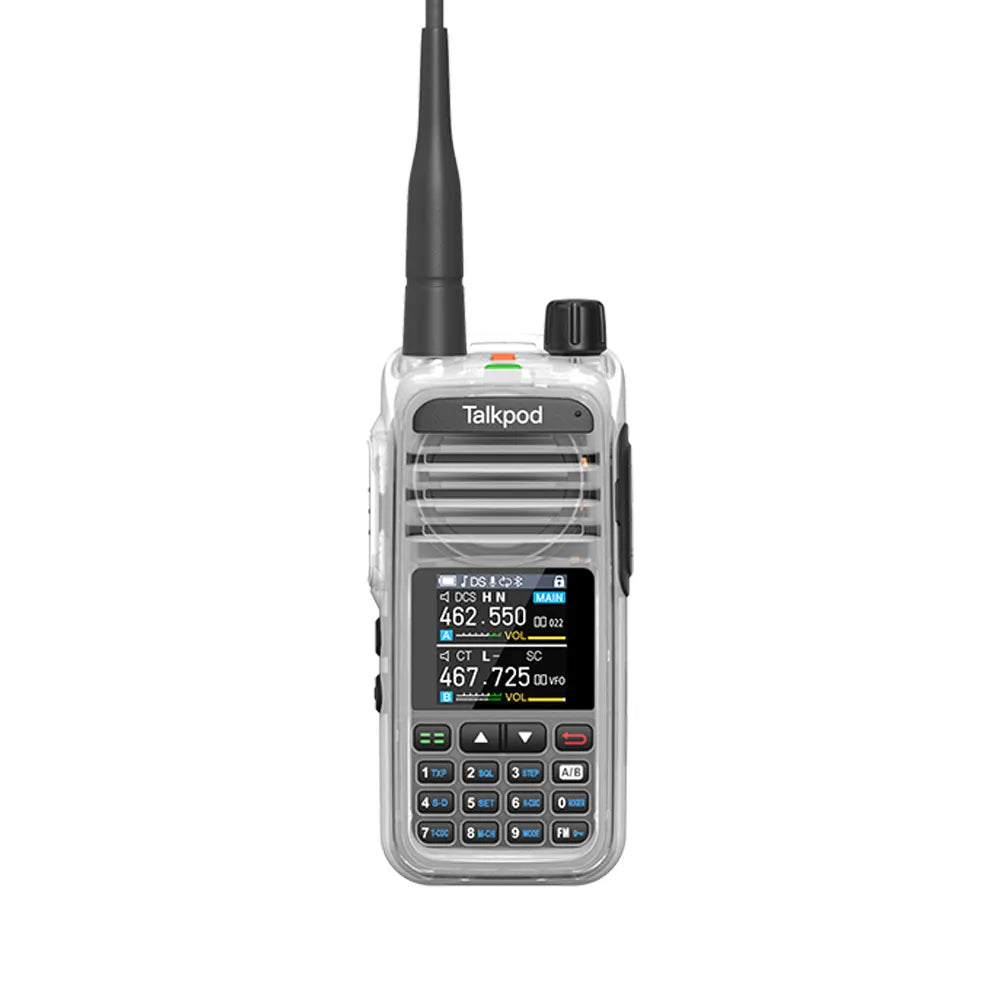

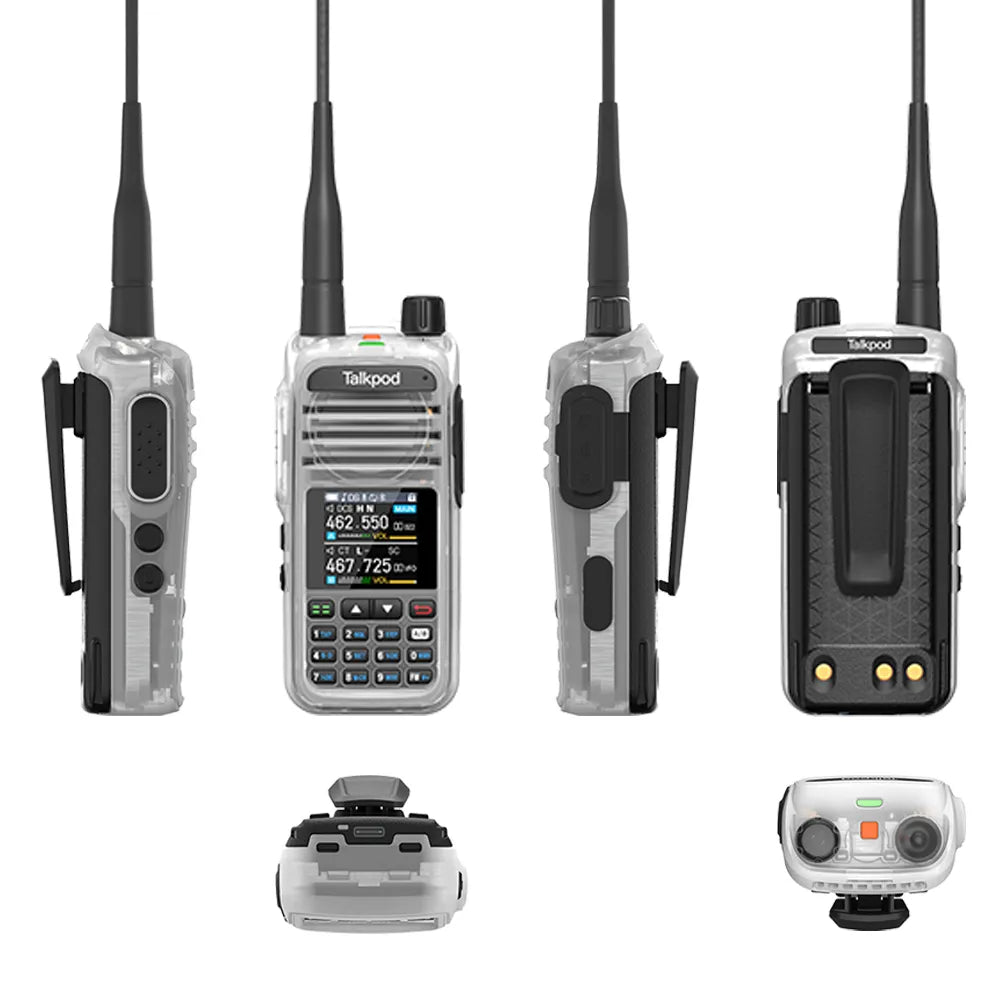

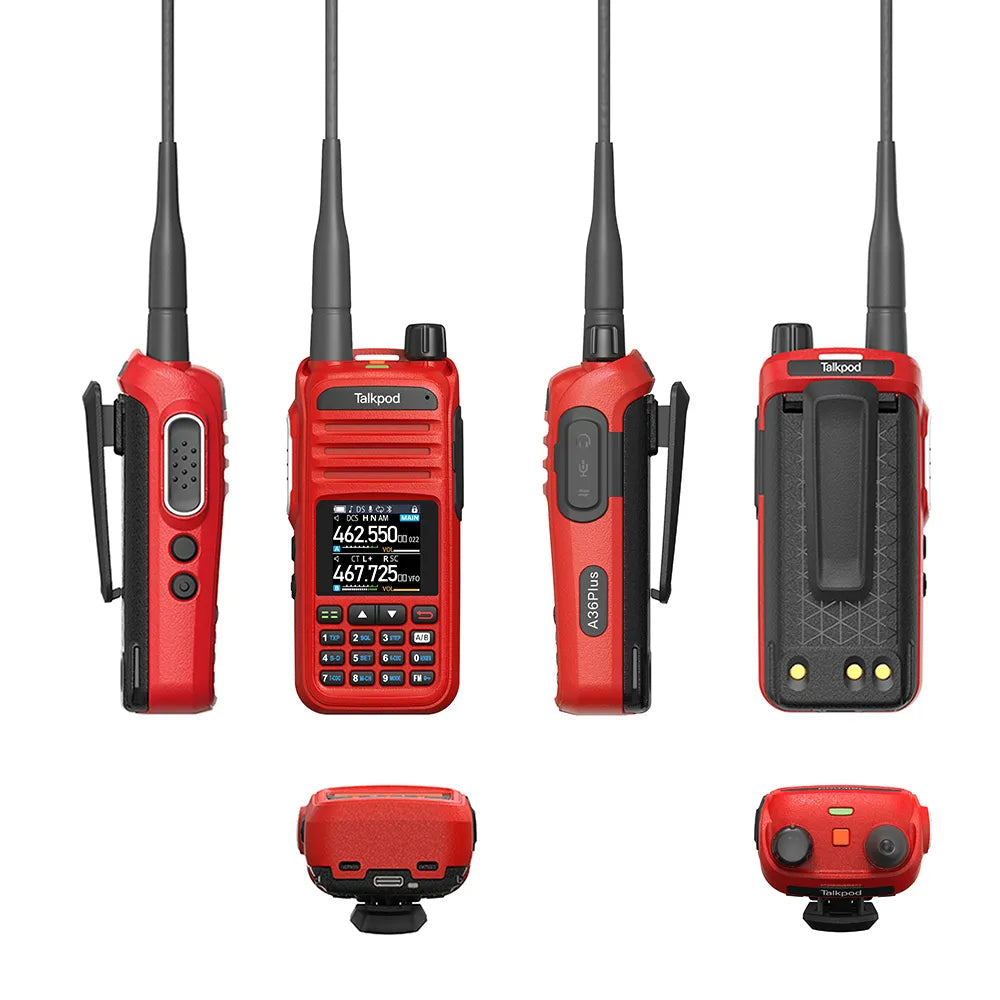

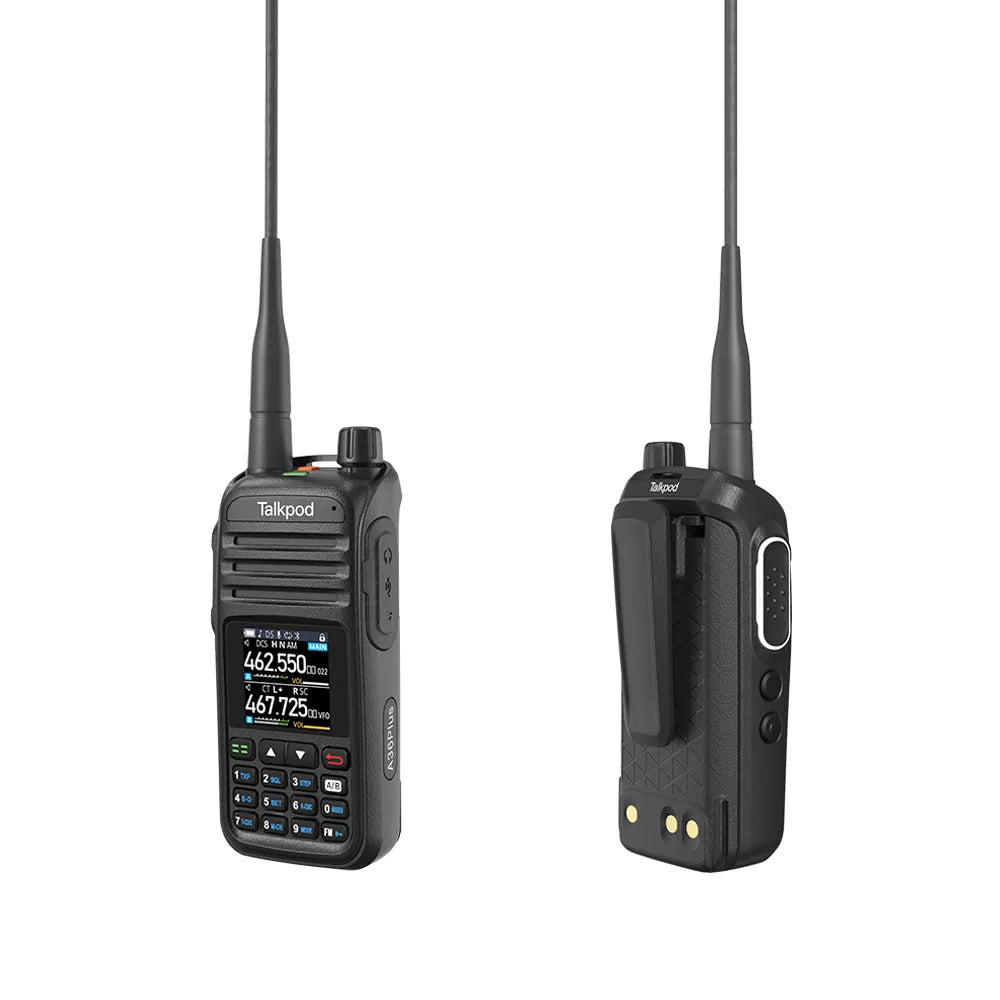

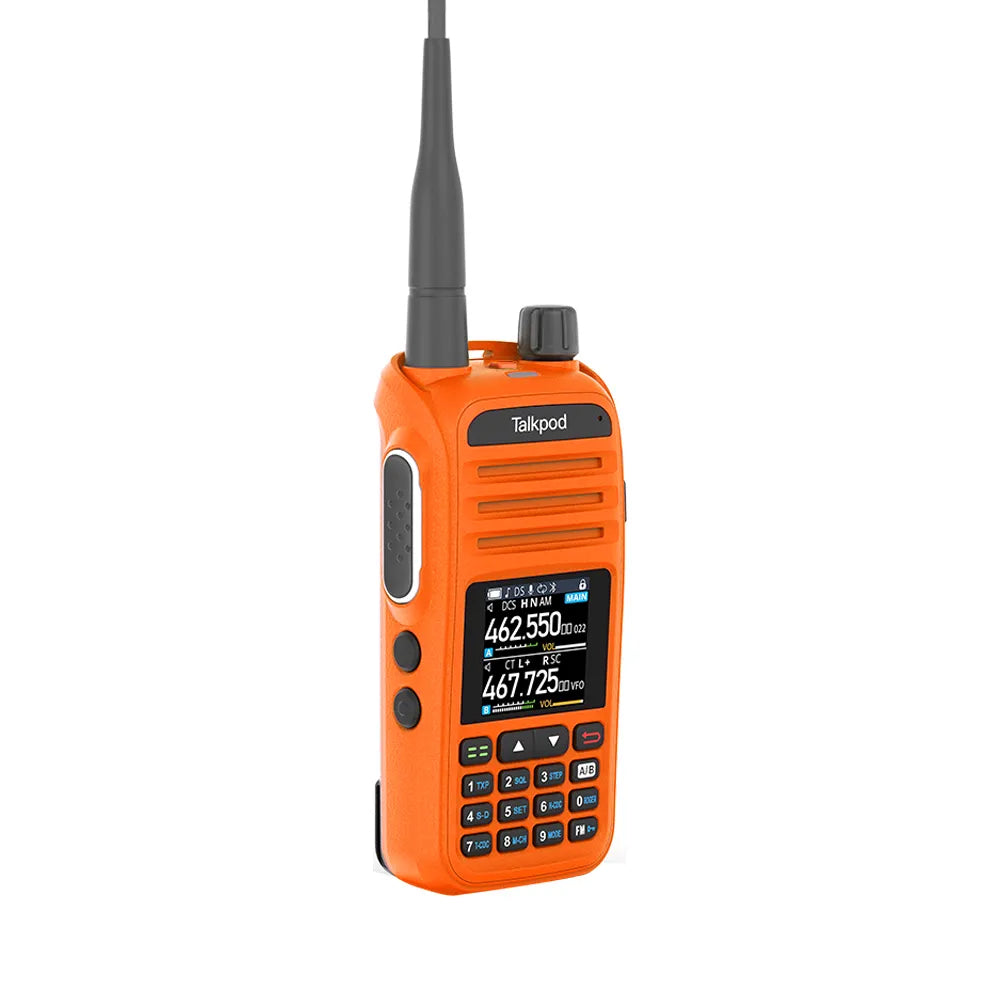

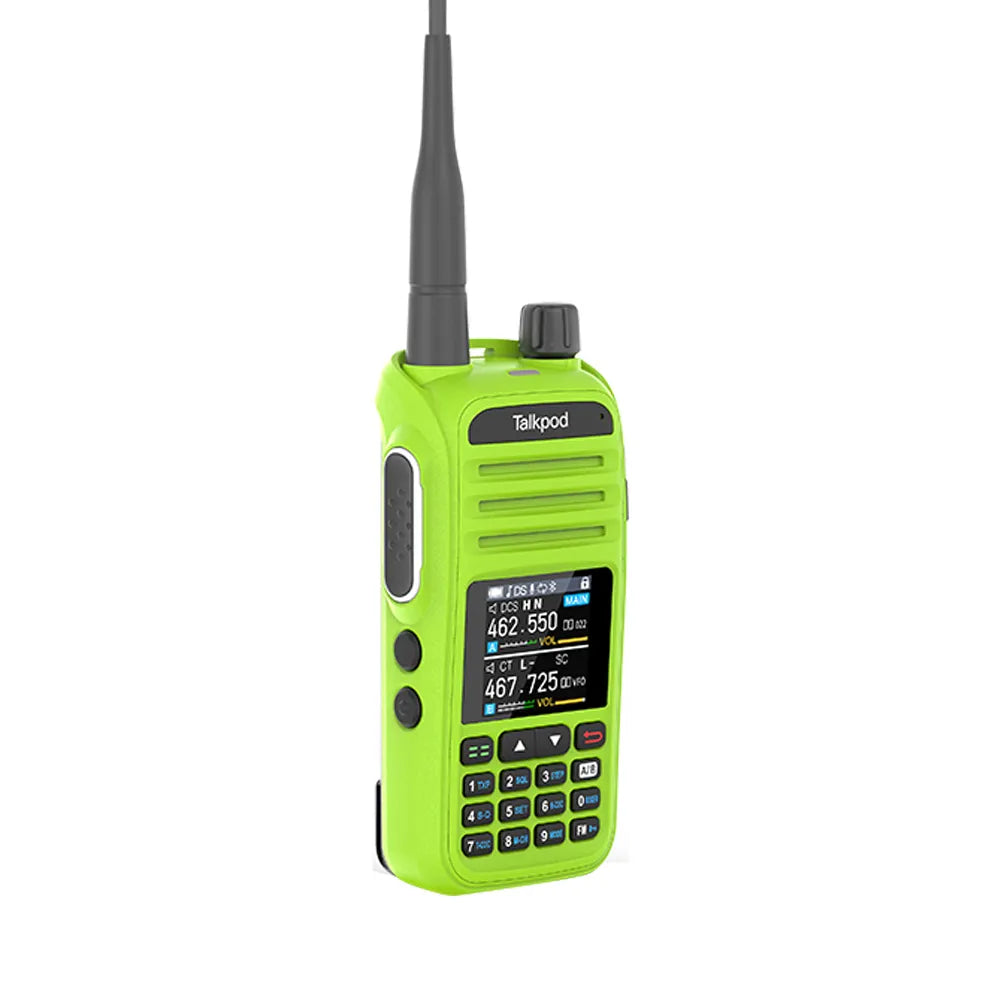

TALKPOD® A36PLUS HAM VHF/UHF DUAL-BAND FM TRANSCEIVER

A36plus Multi-Function Dual Bander with Color Display, Rugged and Basic 2M with Powerful Audio. Talkpod radios are built tough, and the A36plus – Talkpod's most economical 2M – is no exception. This military rugged rig offers water resistance and superior protection against dust and dirt (IP54). Compact, rugged and with plenty of power, the A36plus is ideal for basic, on-the-go ham operations.

TalkpodOnline, Amazon US, CA, MX, AU, EU, UK, eBay

DUAL BANDER WITH SIMPLE OPERATION AND GREAT PERFORMANCE

8W/5W RF Output in 144 and 430 MHz

Using a highly-effcient PA amplifier, the A36plus generates 8W/5W of RF output power from this compact body.

VHF/UHF Airband and FM Broadcast Receiver

Airband reception is expanded from VHF to UHF Military airband. FM broadcast stations can be listened to while using the dualwatch function.

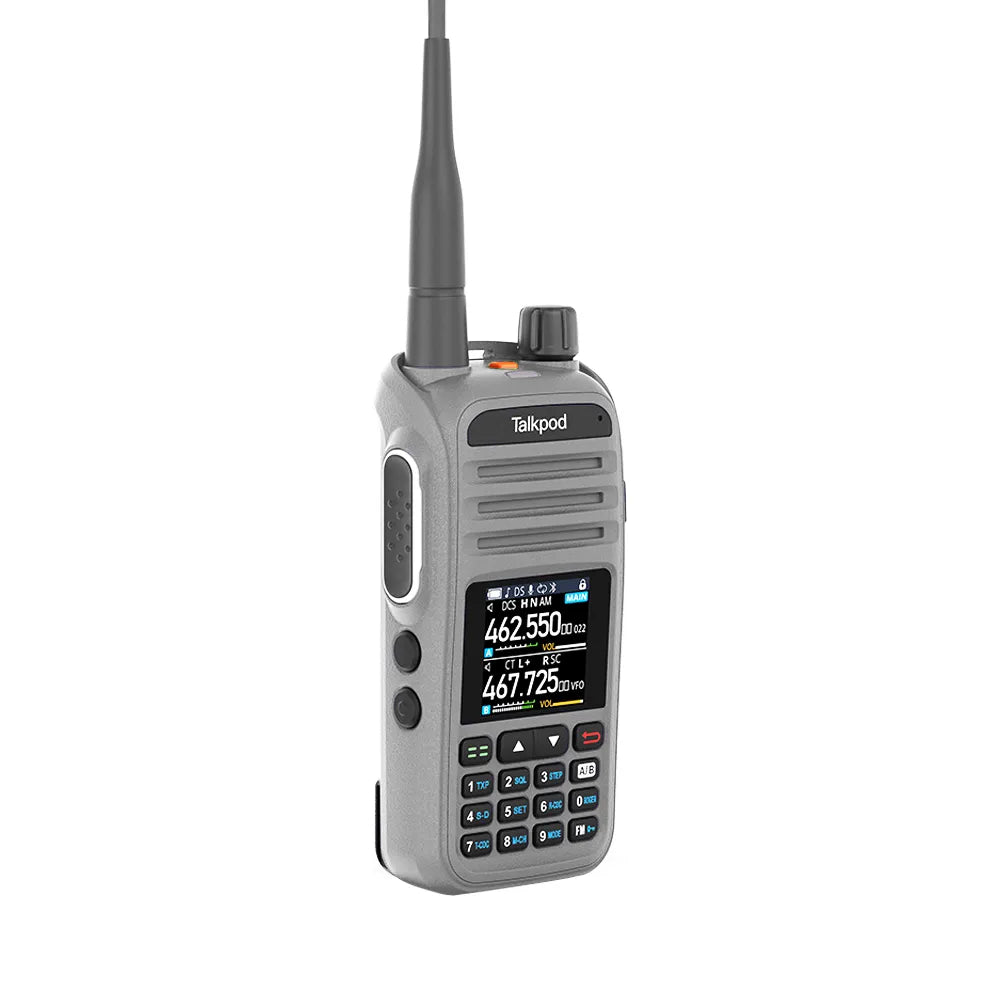

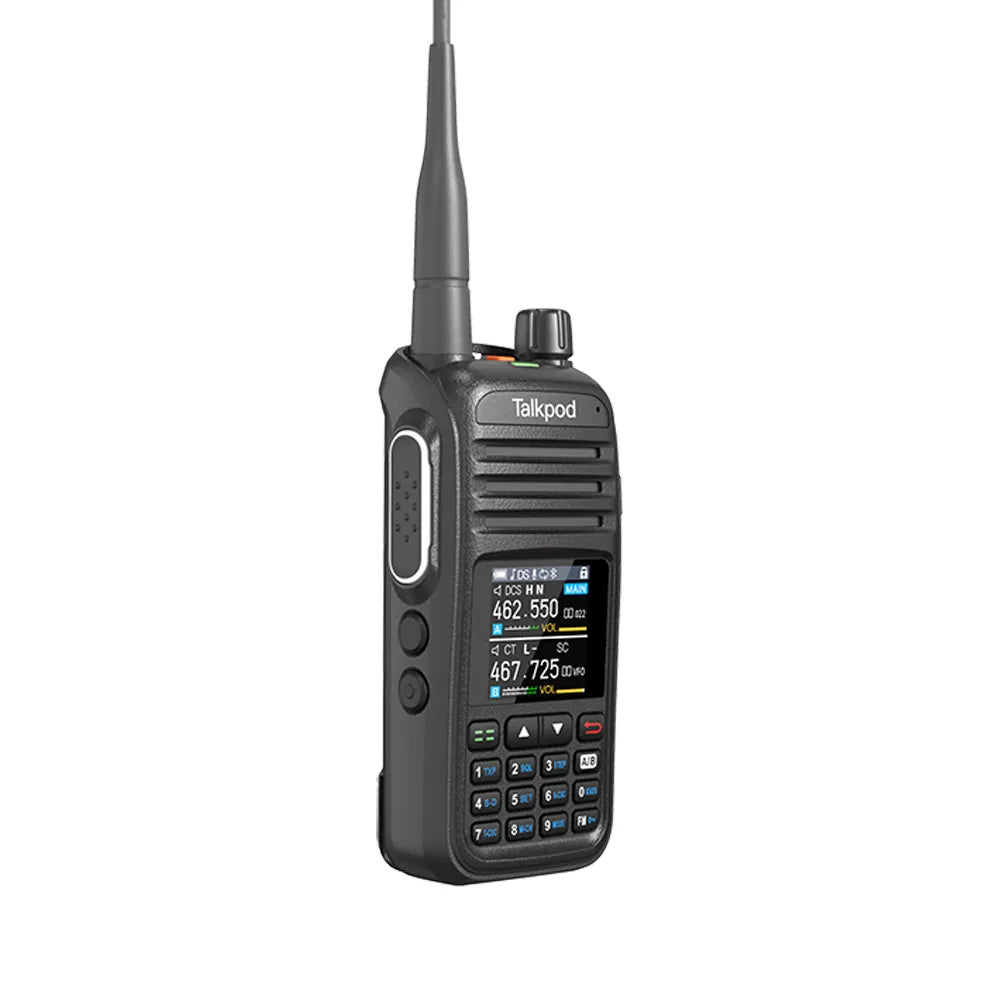

Advanced Functions and Operations with Color Display

The A36plus is equipped with a color display. The display size is increased to 1.4 inches, 280 × 280 pixels to achieve excellent viewability.

1500 mW Loud and Intelligible Audio

Future-proofed for the communications needs of your team today and tomorrow, with both modern and forward-thinking design updates and connectivity options, to keep your team connected now and into the future.

Type-C Charging

Support socket, car, power bank, notebook charging.
Charge anytime, anywhere!

NOAA / SOS

Get notified when the bad weather comes. Emergency One-Touch SOS button.
Everything is one step ahead!

Specification

Model Number

A36P-M13B5UV1
(INT Version)

A36P-M12B5UV3
(USA Version)

A36P-M12B5UV4
(EUR Version)

Frequency TX

136-174, 400-512 MHz

FCC Part 97:
144–148, 430–450 MHz
FCC Part 95E:
462/467MHz

CE EN 301783
144–146, 430–440 MHz

Frequency RX

108-136.991, 136–180, 200-260, 350-400, 400–520 MHz

FCC Part 15B:
136–520 MHz

136–174, 400–479 MHz

FM Broadcast

Airband Reception

76–108 MHz
108-136, 225-374.995 MHz

88–108 MHz
108-136, 225-374.995 MHz

87.5–108 MHz
108-136, 225-374.995 MHz

Number of channels

512 Channels

512 Channels

512 Channels

Type of emission

F2D, F3E (FM)

F2D, F3E (FM)

F2D, F3E (FM)

Output power

5W, 2.5W, 0.5W

5W, 2.5W, 0.5W

5W, 2.5W, 0.5W

Operating temperature range

–20°C to +60°C

–20°C to +60°C

–20°C to +60°C

HAM Sotries

View all
Talkpod A36plus MAX to Understanding CTCSS: Clearing Up the Confusion on Two-Way Radios

Talkpod A36plus MAX to Understanding CTCSS: Clearing Up the Confusion on Two-Way Radios

This blog post explores CTCSS (Continuous Tone-Coded Squelch System) and clarifies its role in two-way radio communication. The video linked https://www.youtube.com/watch?v=xbDObph9IHE uses the T...

Talkpod A36plus Max: A Budget-Friendly Dual-Band Radio

Talkpod A36plus Max: A Budget-Friendly Dual-Band Radio

Unboxing and Initial Impressions In this video, we take a closer look at the TalkPod A36 Plus Max, an affordable dual-band radio that offers a surprising amount of features. The package includes t...

Talkpod A36plus MAX VS other 10watts, Chinese Handheld Faceoff!

Talkpod A36plus MAX VS other 10watts, Chinese Handheld Faceoff!

TDH8 (10 watts)Talkpod A36plus MAX (8 watts)TDH3 (5 watts) The video aimed to see if there's a noticeable difference in range based on wattage alone. Here's a summary of the experiment:The test was...

Talkpod A36plus Max: A Reliable Companion for Outdoor Adventures

Talkpod A36plus Max: A Reliable Companion for Outdoor Adventures

A recent review on Amazon praises the A36Plus Max as a dependable handheld radio for outdoor enthusiasts.The reviewer highlights the device's ergonomic design, making it comfortable to hold during ...

🇨🇦 A Reliable Companion for Outdoor Adventures: The Talkpod A36plus Max

🇨🇦 A Reliable Companion for Outdoor Adventures: The Talkpod A36plus Max

A user review highlights the A36Plus Max as a valuable tool for maintaining communication in remote areas. The reviewer, a frequent hiker, recognizes the limitations of cellular service in remote ...

🇬🇧 A Budget-Friendly Gem: Peter Baines' Review of the Talkpod A36plus Max

🇬🇧 A Budget-Friendly Gem: Peter Baines' Review of the Talkpod A36plus Max

Peter Baines has praised the TalkPod A36Plus Max as an exceptional value for its price.In his review, Baines highlighted the radio's impressive build quality, intuitive menu system, and user-friend...

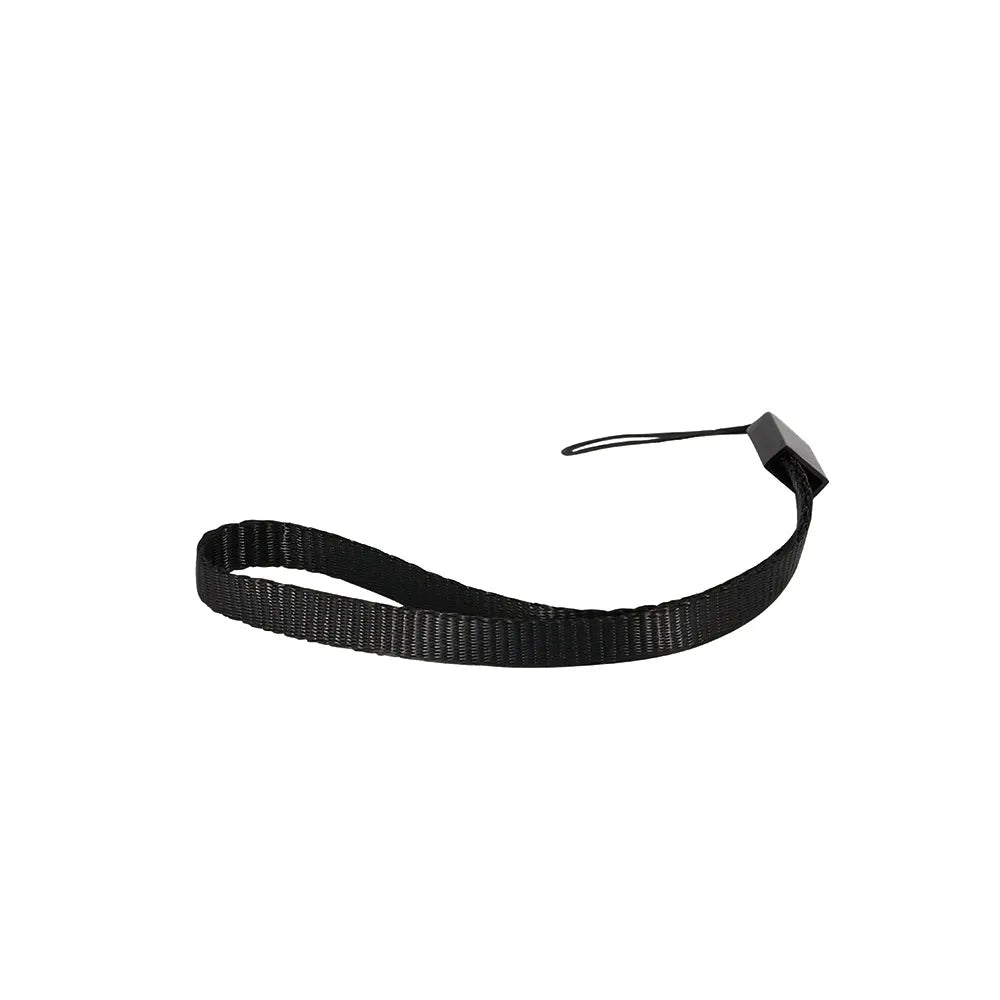

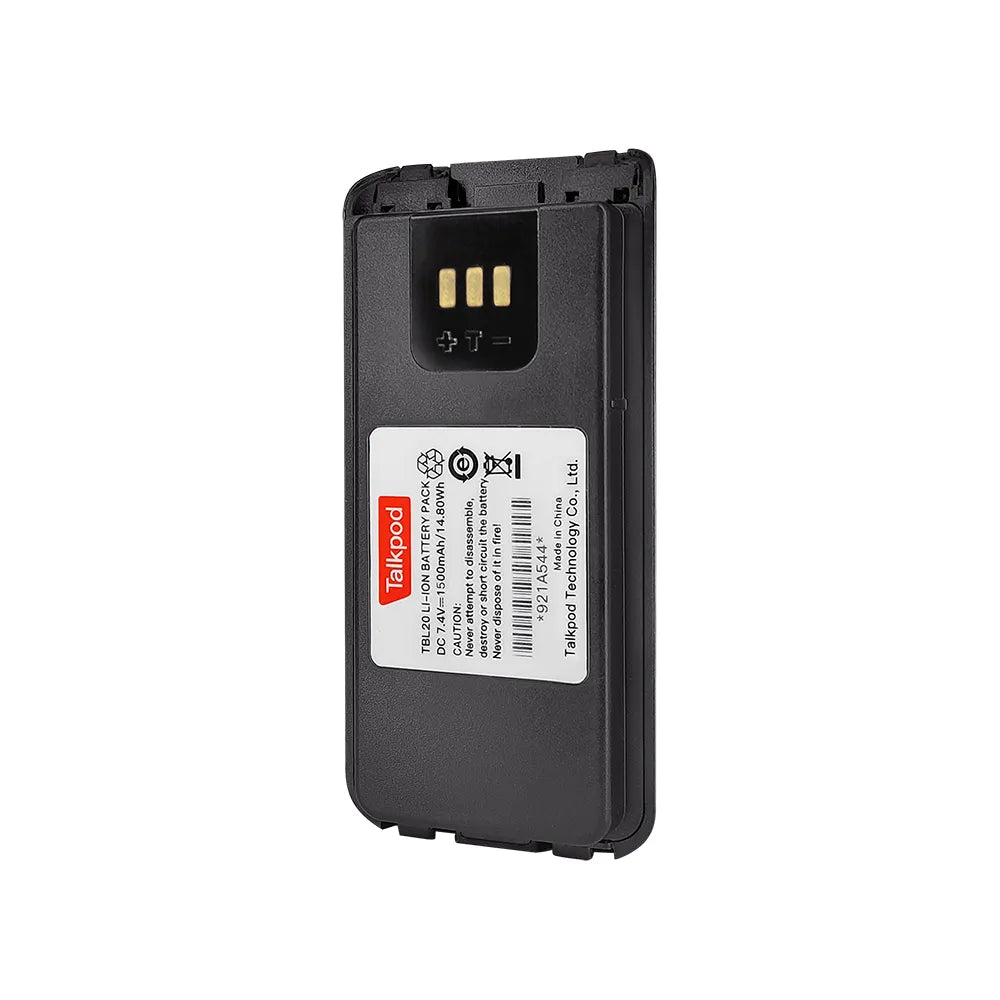

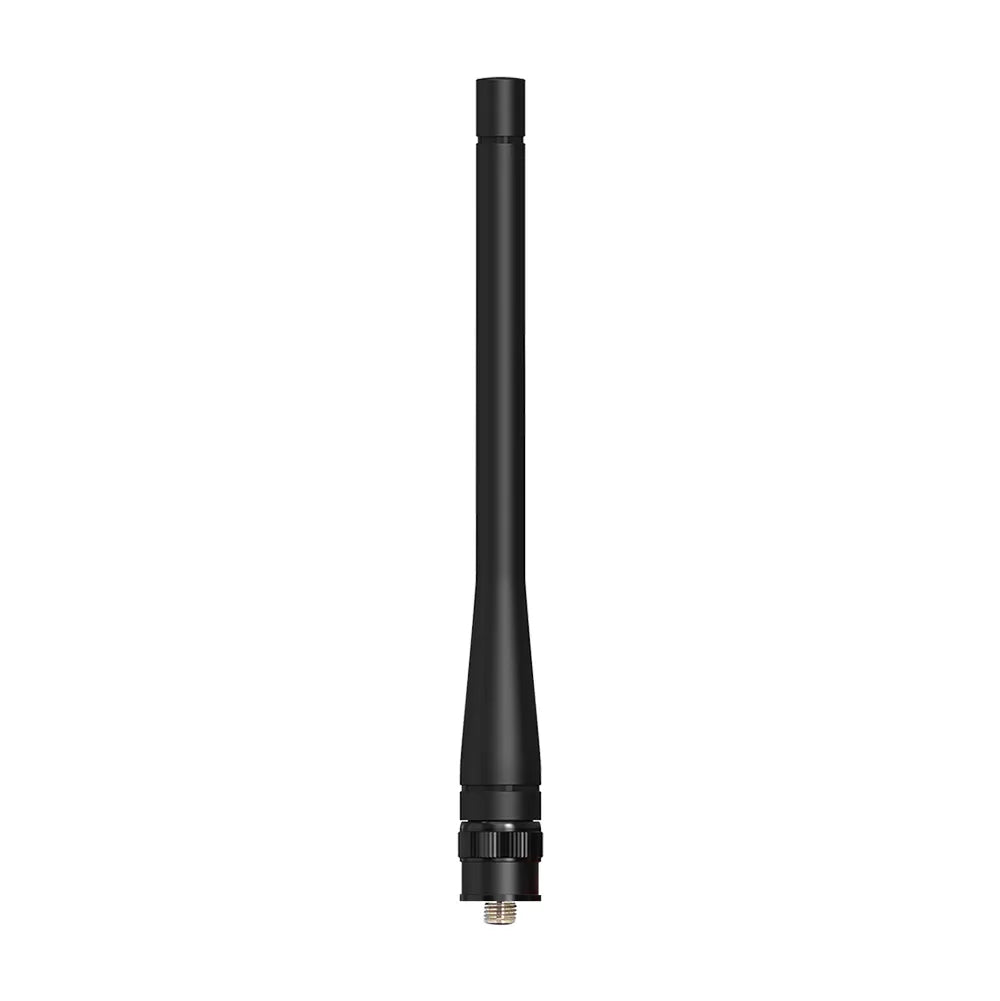

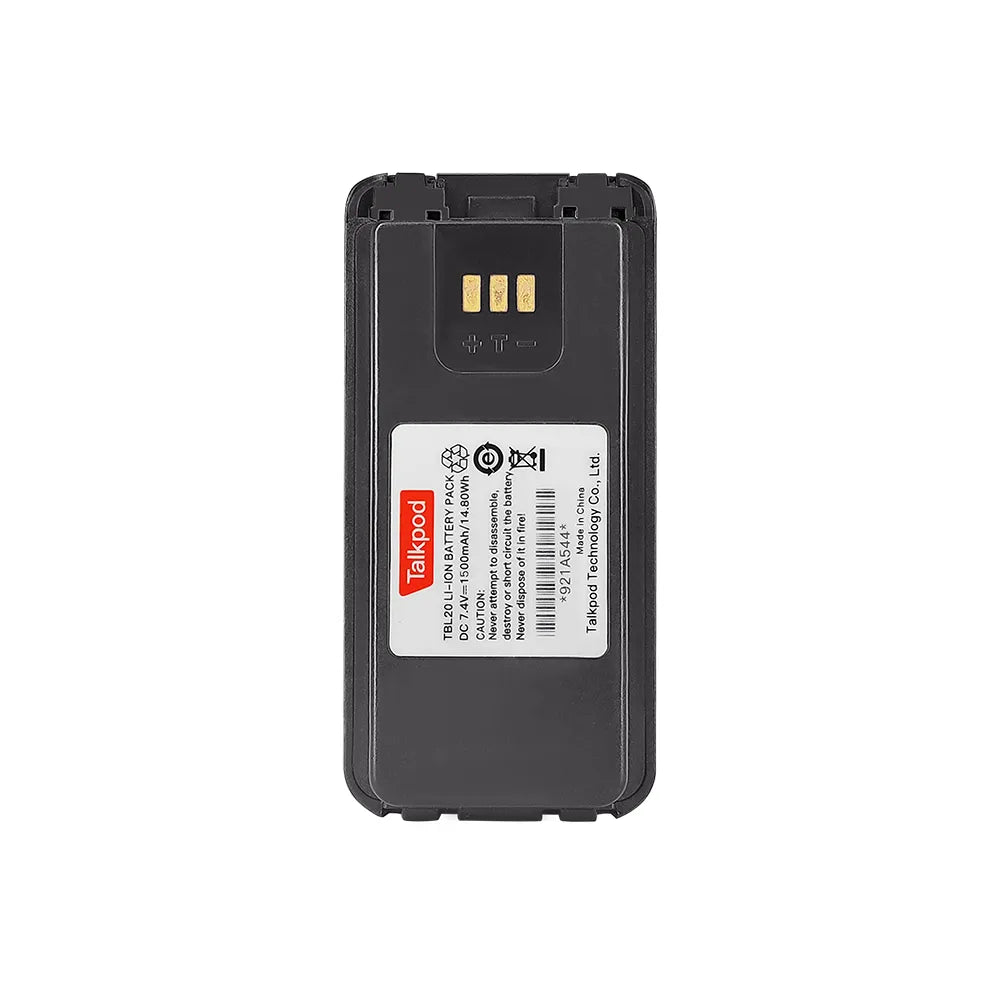

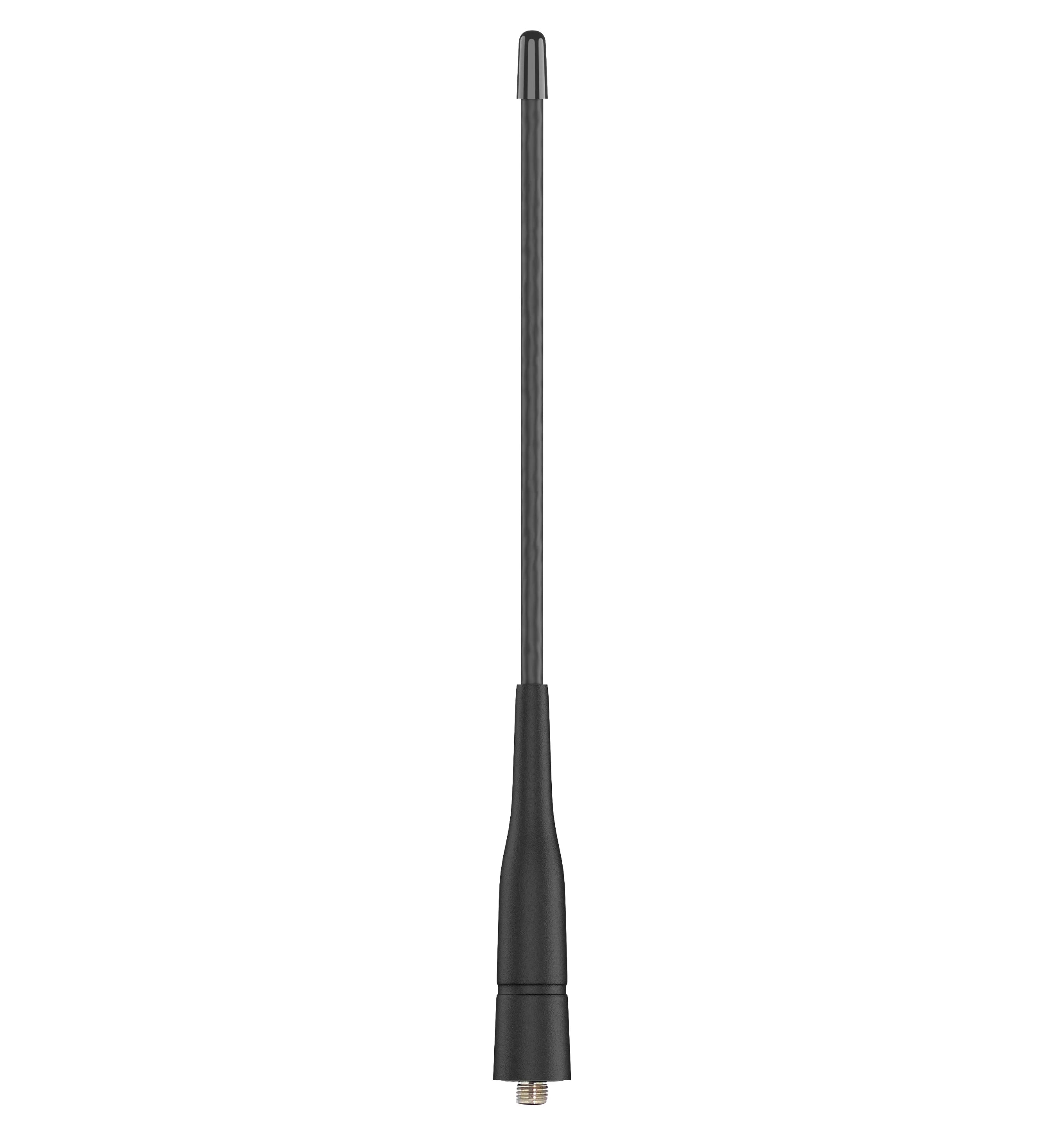

Accessories
